PZ30 Distribution Box
Category :
hiddenValue
PRODUCT DETAILS

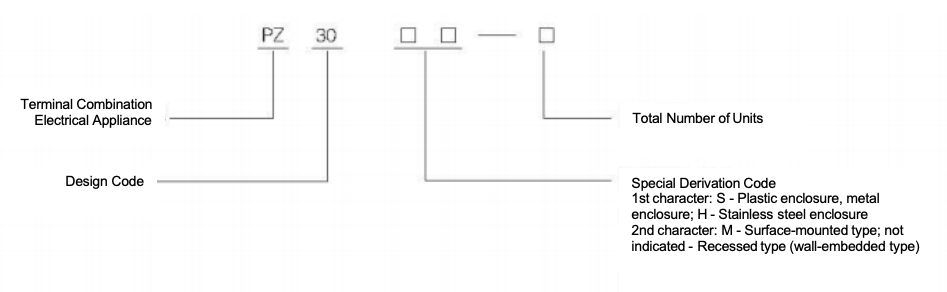

■ Model Description
■ Technical Data
The main technical indicators of the Modular Terminal Combination Electrical Appliance are shown in Table 1
Material | Rated Voltage (V) | Total Current of Single-Row Loads (A) | Total Number of Units | Rated Short-Circuit Current Breaking Capacity (kA) | Enclosure Protection Class | Allowable Enclosure Temperature Rise (K) | |
Single-phase | Three-phase | ||||||
Metal | 220, 380 | 100 | 63 | 6, 9, 10, 12, 15, 18, 30, 45 | 20 | IP30, IP40 | 30 |
All-plastic | 220, 380 | 100 | 63 | 2, 4, 6, 9, 12, 15, 18, 24, 36 | 20 | IP30, IP40 | 40 |

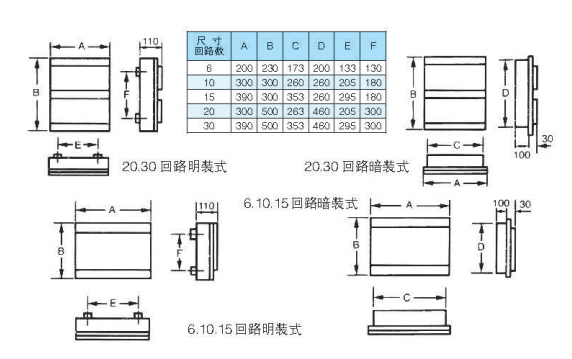

Model | Overall Dimensions | Installation Dimensions | |||||||
A | B₁ × A₂ | B₂ | F | G | C | D | E | ||
PZ20J-6 | 160 | 220 (+50) | 180 | 240 | 62 | 90 | 116 | 160 | 143 |
PZ20J-10 | 228 | 220 (+50) | 248 | 240 | 62 | 90 | 188 | 164 | 221 |
PZ20J-15 | 315 | 220 (+50) | 335 | 240 | 62 | 90 | 270 | 160 | 298 |
PZ20J-30 | 315 | 380 (+50) | 335 | 240 | 62 | 90 | 270 | 310 | 298 |
PZ20J-45 | 315 | - | 335 | - | 62 | 90 | 270 | - | 298 |
| 箱体型号 | 回路 | 安装方式 | A | B | C | D | H | E | F | |
| Type of enclosure | Circuits | Type of mounting | ||||||||
| PZ30-6 | 6 | 明(Surface) | M | 220 | 230 | 190 | 220 | 100 | 133 | 130 |
| 暗(Flush) | R | 170 | 200 | |||||||
| PZ30-10 | 10 | 明(Surface) | M | 300 | 300 | 290 | 290 | 100 | 205 | 180 |
| 暗(Flush) | R | 260 | 260 | |||||||
| PZ30-15 | 15 | 明(Surface) | M | 390 | 300 | 380 | 290 | 100 | 295 | 180 |
| 暗(Flush) | R | 350 | 260 | |||||||
| PZ30-20 | 20(竖) | 明(Surface) | M | 300 | 500 | 290 | 490 | 100 | 205 | 420 |
| 暗(Flush) | R | 260 | 460 | |||||||
| PZ30-20 | 20(横) | 明(Surface) | M | 480 | 300 | 470 | 290 | 100 | 385 | 420 |
| 暗(Flush) | R | 440 | 260 | |||||||
| PZ30-30 | 30 | 明(Surtace) | M | 390 | 500 | 380 | 490 | 100 | 295 | 420 |
| 暗(Flush) | R | 350 | 460 | |||||||
| PZ30-40 | 40 | 明(Surface) | M | 565 | 500 | 550 | 490 | 100 | 460 | 420 |
| 暗(Flush) | R | 525 | 460 | |||||||
| PZ30-45 | 45 | 明(Surtace) | M | 390 | 700 | 380 | 690 | 100 | 225 | 610 |
| 暗(Flush) | R | 350 | 660 | |||||||
| PZ30-60 | 60 | 明(Surface) | M | 745 | 500 | 730 | 490 | 100 | 625 | 420 |
| 暗(Flush) | R | 705 | 460 | |||||||
