The safe power supply trolley busway device is widely used in electric hoists, electric beam cranes, overhead cranes, gantry cranes, loaders, stackers and other storage-related equipment, as well as mobile power tools, automatic production lines, testing lines and all other equipment and locations requiring mobile power reception.

Our company produces four major series of safe trolley busways: HFP Multi-Pole Plastic Tube Type, HFJ Multi-Pole Aluminum Enclosure Type, HFD Single-Pole Aluminum Alloy Combined Type, and HFG Steel Conductor Type. The operating current ranges from a minimum of 50A to a maximum of 2200A. We also produce DHC Cable Trolley Lines as supporting products for explosion-proof mobile equipment. Our products can meet the requirements of various industries for safe trolley busways.

■ Main Technical Indicators of the Product

1.The altitude of the area where the product is used: H ≤ 2000m;

2.The pole-to-earth and pole-to-pole insulation resistance: R ≥ 5MΩ;

3.The insulation dielectric strength: AC 3000V, 50Hz, with no breakdown or flashover for 1 minute;

4.The Comparative Tracking Index (CTI): CT1 ＞ 600V;

5.The fire resistance performance: flame-retardant and self-extinguishing (tested by the Self-Ignition Lamp Method);

6.The enclosure protection degree (IP Code): IP13 and IP53 (IP53 is dust-proof);

7.The maximum operating speed:

HFP ＞ 120m/min

HFJ ＞ 200m/min

HFD ＞ 600m/min

8.The electrodynamic stability: 50 times the rated current for 0.1 seconds;

9.The corrosion resistance: resistant to acid mist, alkali mist and salt mist corrosion.

10.Temperature Conditions:HFP (-30℃ ~ +55℃)HFJ (-30℃ ~ +65℃)HFD (-30℃ ~ +80℃)

11.Relative Humidity: 95% (+25℃)

12.Atmospheric Pressure: 86~106Kpa

13.Impact Resistance: t: 1ms, a: 500g

14.Service Life: 10 years indoors, 8 years outdoors

15.Effective Operating Pressure of Carbon Brush: 2±0.5N/cm²

16.Conductor Resistivity: Complies with National Standard GB 3852-3953-83 Conductors of Wires and Cables

ρCu ≤ 0.02Ω·mm²·m⁻¹

ρCu ≤ 0.02Ω·mm²·m⁻¹

■ Model and Specification

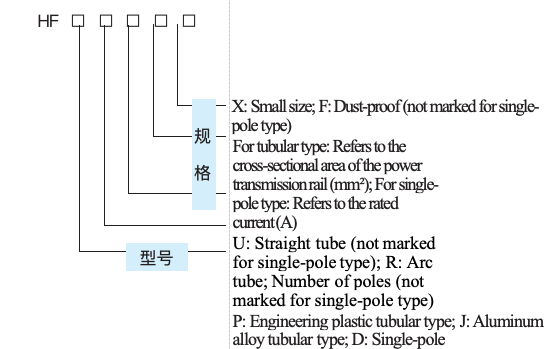

A: Model and specification of the trolley busway, composed of the symbol "HF" plus a suffix:

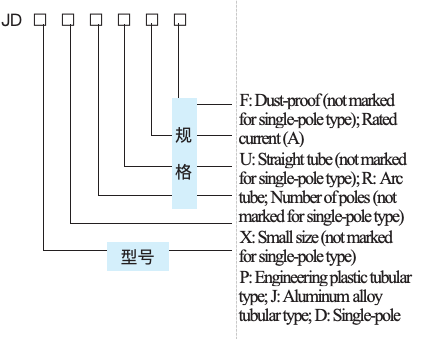

B: Model and Specification of Current Collector, composed of the symbol "JD" plus a suffix:

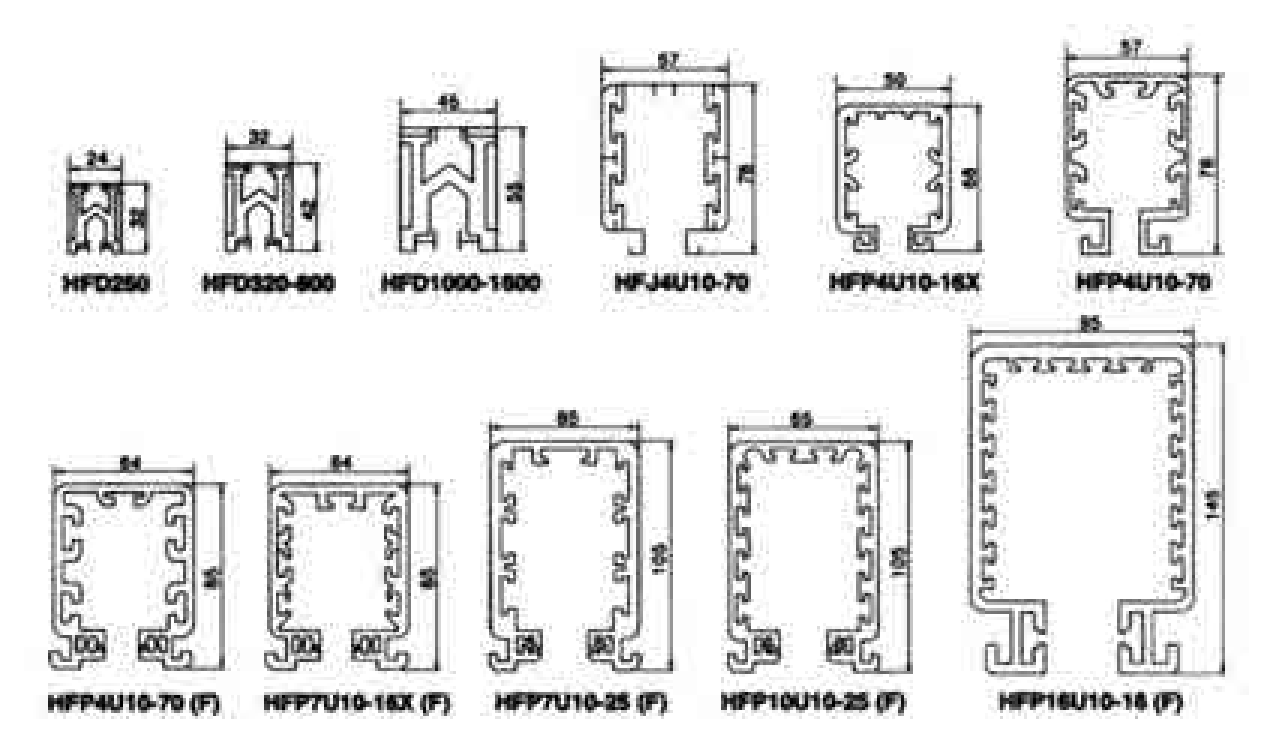

■ Cross-Sectional View of Trolley Busway Conduit

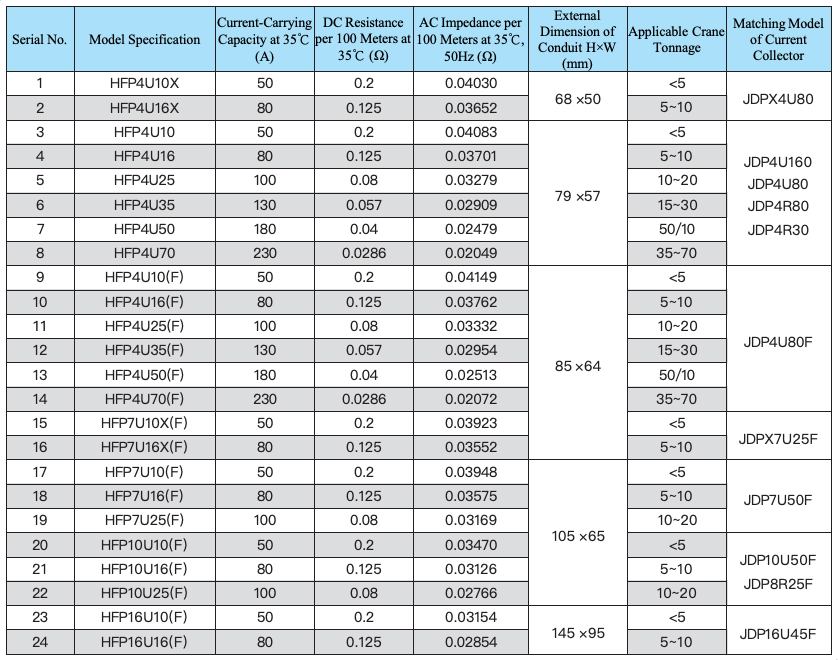

■ Basic Technical Parameters of HFP Engineering Plastic Tubular Trolley Busway

The HFP series products have a fixed length of 4 meters, with the current-carrying rail material being T2 electrical copper. For Serial Nos. 9-24, two specifications of trolley busways (standard type and dust-proof type) are available, and the corresponding current collectors are universal. For Serial Nos. 1-8, 15, 16, 20, 21, and 22, arc tubes with a radius of more than 1.2 meters can be processed.

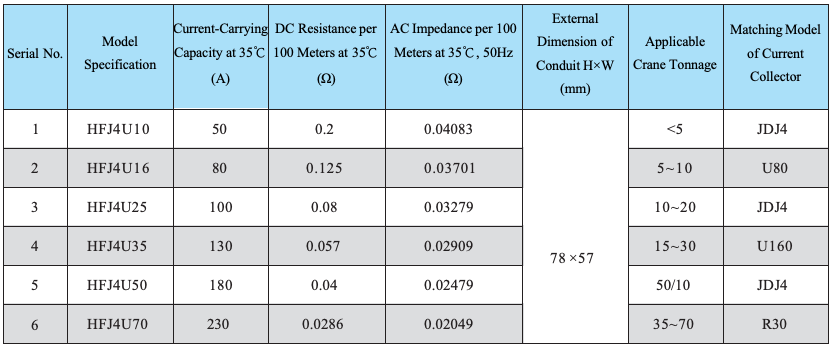

■ Basic Technical Parameters of HFJ Aluminum Alloy Tubular Trolley Busway

HFJ series products have a fixed length of 4 meters, and can be processed to manufacture arc tubes with a radius of more than 1.2 meters. The current-carrying material is T2 electrical copper. HFJ series products are suitable for cranes used in outdoor open-air locations and high-temperature environments.

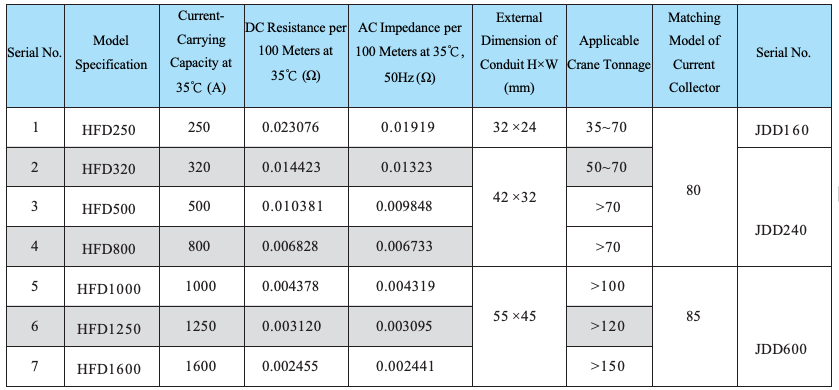

■ Basic Technical Parameters of HFD Aluminum Alloy Single-Pole Trolley Busway

HFD series products have a fixed length of 6 meters, and the current-carrying rail is made of LD3 aluminum profile.The HFD single-pole H-type trolley busway is suitable for high-power hoisting equipment. 1Cr18Ni9 (a type of stainless steel) is press-fitted into the current-carrying groove.
